In a multi-channel marketplace, your physical footprint remains your most high-impact, high-frequency touchpoint. Whether you are executing a regional rebrand, upgrading an enterprise facility, or launching a new flagship location, custom signage is a capital expenditure that delivers compounding visual branding equity over time.
However, physical branding carries a critical risk factor that digital campaigns do not: you cannot hit "undo" on a manufactured, steel-framed, architectural sign, once it is anchored to concrete. For marketing directors, procurement specialists and business owners, a botched signage project means lost revenue, delayed openings and a massive blow to brand consistency.
In 2026, where omni-channel visibility must blend flawlessly between local physical spaces and spatial-augmented reality overlays, getting your physical graphics right the first time is non-negotiable.
What should I know before ordering custom business signage?
This definitive guide breaks down the 10 structural, legal, design and strategic steps every marketing decision-maker must take, before authorising a custom signage production order.
1. Do I Need Planning Permission Before Installing Commercial Signage?
Before a single pixel is rendered, or a sheet of acrylic is cut, you must navigate UK planning law. In England, commercial signage is governed primarily by The Town and Country Planning Act. Depending on the sign's size, location and whether it is illuminated, your project will either fall under "Deemed Consent", or require formal "Express Consent", from your Local Planning Authority. Displaying non-compliant signage, without necessary approvals, is a criminal offence that can result in heavy fines, enforcement notices and costly removal.
Understanding Deemed Consent vs Express Consent
Many standard business signs benefit from Deemed Consent, meaning you do not need to submit a formal planning application, provided specific limits on size, height and projection are respected.
Illumination Limits: Illuminated signs (halo-lit, internal LED, or edge-lit) frequently require Express Consent, particularly if located near roads or residential areas where luminance levels are strictly capped to prevent driver distraction and light pollution.
Conservation Areas and Listed Buildings: If your premises are listed, or situated within a designated Conservation Area, Deemed Consent rights are significantly restricted. Express Consent and Listed Building Consent are almost always mandatory.
Highways and Projection Rules: Signs projecting over public footpaths, or highways, must maintain mandatory vertical clearance (typically 2.6m) and obtain appropriate highway authority licenses alongside planning approvals.
Navigating Landlord Guidelines and Tenant Criteria
If your business operates within a managed commercial property, lifestyle centre, or multi-tenant retail space, you may be subject to private regulations alongside the requirements of the law. Tenant Criteria Documents may dictate exact material finishes, permitted colour palettes, architectural mounting styles (e.g., individual built up letters vs. channel fixing rails) and exact drop-down dimensions. Secure explicit, written landlord approval of your conceptual drawings, before proceeding to engineering.

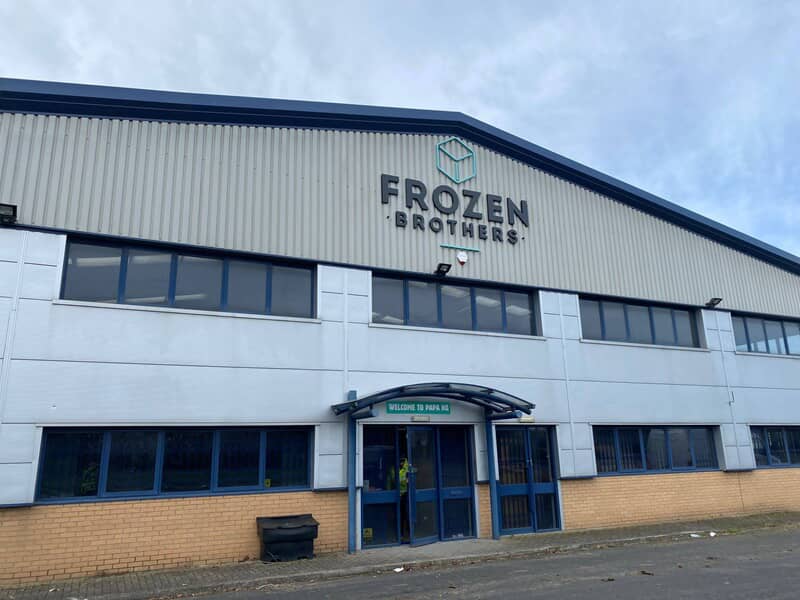

Photo caption: A well-placed custom business sign improves visibility, reinforces brand recognition and helps customers easily locate Frozen Brothers Manufacturing facility.
2. Execute a Comprehensive Visibility and Traffic Angle Site Survey
A sign that looks stunning on a 4K design monitor, can fail completely in the physical world if it is obscured by unexpected environmental blind spots. Visibility surveys are essential, as sightlines change dramatically when viewed from a vehicle moving at 45 mph, versus a pedestrian on a pavement.
Calculating the Legibility Index for Vehicle Speeds
The standard rule of thumb, for static text visibility, states that every 2.5 cm (25 mm) of letter height provides roughly 3 metres of clear readability. However, this dynamic shifts when calculating for vehicular traffic:
Vehicle Speed (MPH) | Required Letter Height | Minimum Readable Distance |
25 mph | 10 to 15 cm | 12 to 18 m |
35 mph | 20 to 25 cm | 24 to 30 m |
45 mph | 30 to 38 cm | 36 to 45 m |
55+ mph | 45+ cm | 55+ m |
Factoring in Seasonal and Environmental Obstructions
A site survey must account for four-season variables. A spot that seems wide open in January, might be entirely masked by dense leafy canopies by June.
Utility Infrastructure: Are overhead power lines, or traffic signs, cutting through your prime sightlines?
Competing Visual Noise: Does the adjacent business feature a massive, flashing electronic sign, that will visually swallow your minimalist, unlit storefront display?
H2: 3. What are the most durable materials for outdoor signs?
Choosing materials based solely on aesthetics, or upfront cost, is a recipe for premature degradation. Sun, moisture, extreme temperature shifts and high winds tear down cheap substrates in months.
Choosing Substrates Built to Endure
Aluminium and ACM (Aluminium Composite Material): The industry standard for structural longevity, ACM, offers incredible rigidity without the heavy weight of solid steel, making it impervious to rust, warping and extreme thermal expansion.
Acrylic vs. Polycarbonate: For illuminated sign faces, acrylic offers beautiful gloss and clarity but can crack under heavy hail impact. Polycarbonate provides bulletproof durability against vandalism and severe storms, though it requires specialised UV coatings to prevent yellowing over time.
High-Density Urethane (HDU): The premier choice for dimensional, routed, or sandblasted artisan signs. Unlike natural wood, HDU will never crack, rot, split, or absorb moisture.
Calculating Wind Load and Structural Integrity
For large exterior pylon signs, flag structures, or high-rise building wraps, local building regulations mandate specific wind-load structural calculations. Your custom signage must be structurally engineered, to ensure it can withstand regional gale forces, adhering to BS EN 1991-1-4 (Eurocode 1) standards for wind actions. This requires certified structural calculations and detailed engineering drawings, specifying internal steel framing and foundation (concrete base) requirements.
4. Align the Design Package with Global Brand Standards
Physical branding requires a completely different approach to colour theory and typography, than digital or print marketing. If your brand design and guidelines were designed primarily for mobile screens and PDF pitch decks, they will face serious friction when translated to metal, acrylic and LEDs.
Translating Digital RGB/Hex Codes to Physical Media
RGB pixels emit light; CMYK ink reflects light; paint and vinyl pigments possess entirely independent chemical structures. For absolute brand cohesion, across multi-site installations, require your graphics partner to map your brand assets directly to physical colour indexing standards:
Pantone Matching System (PMS): Crucial for specifying paint formulations, for structural returns and backgrounds.
Cast Translucent Vinyl Specs: Essential for illuminated signs, where the internal LED light source will alter the perceived colour value of the face film at night.
Typography Optimisation for Low-Light and High-Contrast
Elegant, ultra-thin, serif fonts work beautifully on an executive website header, but they vanish entirely when backlit at night or viewed from a distance.
Stroke Width: Ensure letter stems are thick enough to house internal LED modules, without creating dim spots or "hot spots."
Kerning and Tracking: Open up the spacing between letters. When text is illuminated or highly reflective, light bleeds slightly outward (irradiation), which can blur tightly spaced letters together into an unreadable block.
5. Map the Complete Customer Journey with Strategic Wayfinding Signage
Exterior signs act as a hook, but your interior environmental graphics handle the heavy lifting of customer conversion, brand immersion and spatial navigation. A broken internal wayfinding signage system creates subtle user frustration that damages brand perception and customer experience.

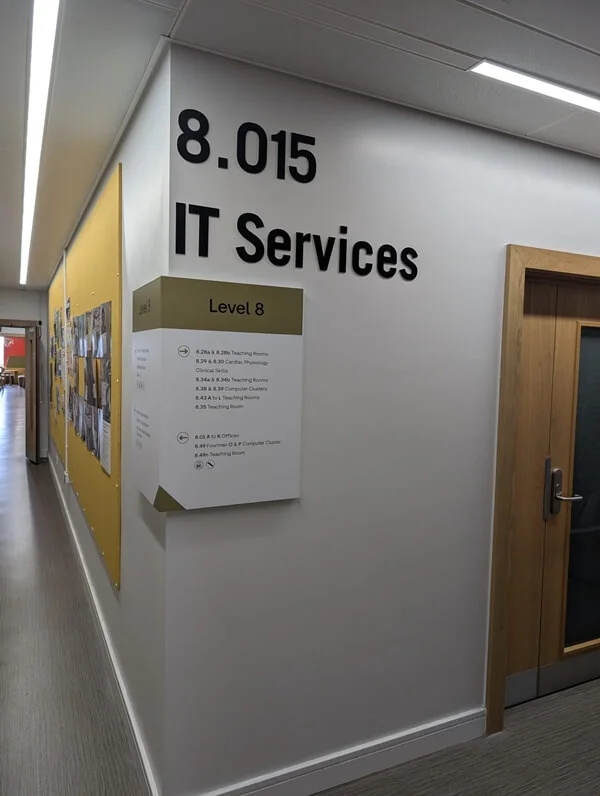

Photo Caption: Interior wayfinding signage helps customers navigate offices, healthcare facilities, schools, and retail environments while reinforcing your brand.
The Four Pillars of Architectural Wayfinding Signage
To create an intuitive physical environment, your internal graphics strategy must deploy all four core sign types seamlessly:
Identification - Marks destination points (e.g., “Conference Room A,” “Suite 400”).
Directional - Guides movement dynamically (e.g., lift banks, arrow wall decals).
Informational - Provides essential context (e.g., hours of operation, Wi-Fi access codes).
Regulatory - Enforces safety and structural compliance (e.g., fire exits, capacity limits).
Eliminating Spatial Friction and Decision Fatigue
Walk through your location through the eyes of a first-time visitor. Where do they hesitate? Where do delivery drivers invariably get lost? Use architectural focal points to anchor your core messages. High-traffic crossroads demand clear overhead dimensional directory signs, while transactional zones benefit from localised wall graphics, or dimensional logo walls, that validate the customer's arrival.
6. Guarantee Equality Act Sign Compliance and Universal Accessibility
The Equality Act 2010 features legally enforceable standards for inclusive design, including permanent interior signage. Non-compliance leaves your enterprise open to possible civil claims and regulatory enforcement. Technical requirements for accessibility are further defined by Part M of the Building Regulations and the BS 8300 code of practice.
Rules for Tactile Text, Braille and Spatial Mounting
Any sign identifying a permanent room or space (toilets, electrical closets, exits, stairwells), must follow strict accessibility formulas:
Grade 2 Braille: Must feature domed, raised dots, arranged in specific cell spacing, flat, printed dots or jagged, routed indentations do not comply.
Tactile Character Height: Raised lettering should stand between 15mm and 50mm in height and be raised by 1mm to 1.5mm from the background substrate.
Mounting Elevation: Signs should be mounted at a height where they can be easily reached and read by all users, typically with the centre of the sign between 1400mm and 1700mm above the finished floor.
Contrast Ratios and Non-Glare Finishes
UK accessibility guidance requires high visual contrast between the text characters and their background, to assist those with low vision. A Light Reflectance Value (LRV) difference of at least 30 points between the characters and the background, is the standard benchmark for effective contrast. Furthermore, both the characters and the background substrate should feature a matte, eggshell, or non-glare finish, to remain legible under harsh overhead commercial lighting.
7. Audit Power Infrastructure and Energy Efficiency Specs
If your project requires illuminated totem signs, front-lit built up letters, or high-impact digital messaging centres, you are managing an active electrical installation. You must prep your building's electrical infrastructure, before the sign installation team arrives.
Securing the Right Electrical Feeders and Dedicated Circuits
Illuminated signs require dedicated, low-voltage power lines, run directly to the mounting location.
Voltage Drop Calculations: For long exterior cable runs (e.g., from the main electrical room out to roadside totem signs), your electrician must calculate potential voltage drops, to prevent flickering or premature transformer burnout.
Access Points: Ensure your building features accessible drop ceilings, or exterior access panels, where CE-Marked power supplies (transformers) can be safely housed, inspected and serviced.
Embracing Advanced LED Systems Over Legacy Lighting
In 2026, sustainability and corporate ESG (Environmental, Social and Governance) targets mean legacy fluorescent and neon illumination are relics of the past. Modern LED modules deliver superior brightness (measured in lumens per watt), while consuming a fraction of the raw wattage. Ensure your configuration includes integrated photocells, or programmable smart timers, that automatically dim or shut down illumination during off-business hours, to cut operational expenses and comply with local planning regulations concerning light pollution.

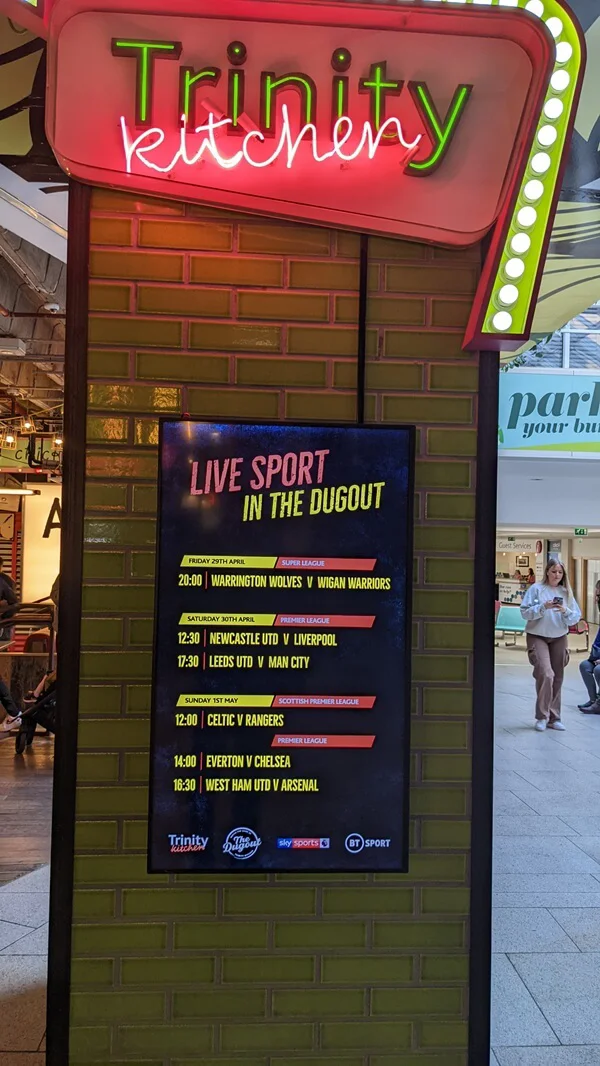

Photo caption: Energy-efficient LED business signs provide bright, long-lasting illumination while reducing maintenance and operating costs.
8. Assess Smart-Signage Integrations (NFC, QR and Spatial Tech)
In 2026, a sign is no longer just a static piece of architecture. It is a physical portal to your digital ecosystem. For modern marketing directors, integrating physical graphics with mobile interactions is a powerful way to capture real-world attribution data.
Embedding Frictionless Mobile Engagement Touchpoints
Dynamic QR Nodes: Integrate high-contrast, stylised QR codes, directly into window graphics, directional directories or point-of-sale displays. Link these nodes to context-aware landing pages, real-time product inventory networks, or instant digital wayfinding maps.
NFC (Near Field Communication) Tags: For premium indoor environments, or museum-style corporate history walls, embed low-profile NFC microchips behind acrylic panels. Users can simply tap their devices against the graphic to launch immersive product details, app downloads, or secure event check-ins.
Prepping for Spatial Computing and Augmented Reality (AR) Overlays
As consumer eyewear and spatial computing platforms scale, physical signs act as foundational visual anchors for mixed-reality worlds. By utilising clean, high-contrast structural silhouettes and distinct geometric design footprints, your physical business signage can double as a scannable "spatial marker." This allows passers-by to view extended digital storefronts, interactive menu modules, or virtual brand ambassadors, superimposed directly over your physical building.
9. Calculate Total Cost of Ownership (TCO) vs. Initial Capital Expenditure
Smart marketing decision-makers view business signage as a long-term asset, not a short-term marketing expense. Evaluating a signage proposal based solely on the upfront production estimate, completely ignores the downstream operational costs.
The Total Cost of Ownership Formula
When evaluating competing bids, build a comprehensive financial model that factors in structural lifespans and ongoing maintenance:
TCO = Initial Manufacturing Cost + Permitting & Engineering + Professional Sign Installation + Lifecycle Energy Consumption + Projected Maintenance/Repair
Factoring in Sign Installation and Logistical Complexity
The cost of building a sign is often entirely distinct from the cost of safely installing it. A thorough estimate must clearly itemise specialised logistical needs:
Heavy Machinery Rentals: Does your sign installation require high-reach cherry picker platforms, industrial cranes, or public pavement closures that demand a council permit?
Subsurface Base: For roadside structures, does the installation quote include professional underground utility mapping scans and deep concrete excavation?
10. Partner with an End-to-End Visual Communications Expert
The ultimate safeguard against a failed sign installation, is moving away from fragmented, transactional vendors and aligning with an end-to-end consulting partner. Managing a sign project by hiring an independent freelance designer, a standalone local permitting expeditor, an unverified sign fabrication shop and a third-party handyman installer, creates massive structural gaps where critical details get lost in translation.
Photo caption: FASTSIGNS provides end-to-end custom signage solutions, from design and permitting to fabrication and professional installation.
Why Corporate Decision-Makers Choose FASTSIGNS
Enterprise-level signage demands unified project management. When you partner with an established industry leader like FASTSIGNS, you gain a dedicated team that handles the entire lifecycle of your physical brand:
Strategic Consultations: Aligning your overarching marketing objectives and business challenges with targeted, high-impact signage strategy.
Comprehensive Project Management: Managing everything from initial site surveys, complex planning permission approvals and landlord negotiations to structural engineering blueprints.
Cutting-Edge Fabrication: Leveraging state-of-the-art material printing, precision CNC routing and high-efficiency electrical assembly.
Certified Sign Installation: Deploying professional, fully insured sign installation experts, who understand local structural codes and safety regulations.
By trusting your visual identity to a comprehensive partner, you eliminate administrative overhead, secure reliable timelines and ensure that your physical branding assets deliver a powerful, unambiguous return on investment (ROI), from the very first day they are unveiled.
How Do I Choose the Right Business Sign for my Location?
Keep this concise checklist on hand before signing off on your final production proof:
- [ ] Planning Permission: Confirmed compliance with local planning authority regulations and secured all necessary consents.
- [ ] Landlord Approval: Obtained formal, written sign-off from property management or tenant boards.
- [ ] Site Survey: Verified vehicle-speed legibility indexes and accounted for seasonal tree/utility blockages.
- [ ] Material Spec: Selected climate-appropriate, wind-load-tested substrates (e.g., ACM, HDU, Polycarbonate).
- [ ] Colour Mapping: Cross-referenced all digital Hex codes with exact physical PMS paint and translucent vinyl indexes.
- [ ] Accessibility Compliance (Equality Act 2010/BS 8300): Verified Grade 2 Braille specs, tactile font sizing, and correct wall-mounting heights.
- [ ] Electrical Prep: Installed dedicated low-voltage circuits and mapped clear access paths to transformers.
- [ ] Digital Integration: Optimised QR codes, NFC tags or spatial computing anchors for mobile engagement.
- [ ] Financial Modelling: Formulated a 5-to-10-year Total Cost of Ownership (TCO) budget rather than just tracking upfront production costs.
- [ ] Signage Partner Alignment: Contracted an end-to-end visual communications provider to oversee execution from design to installation.
